Welcome To

Speedy Lock Your Key, Our Business

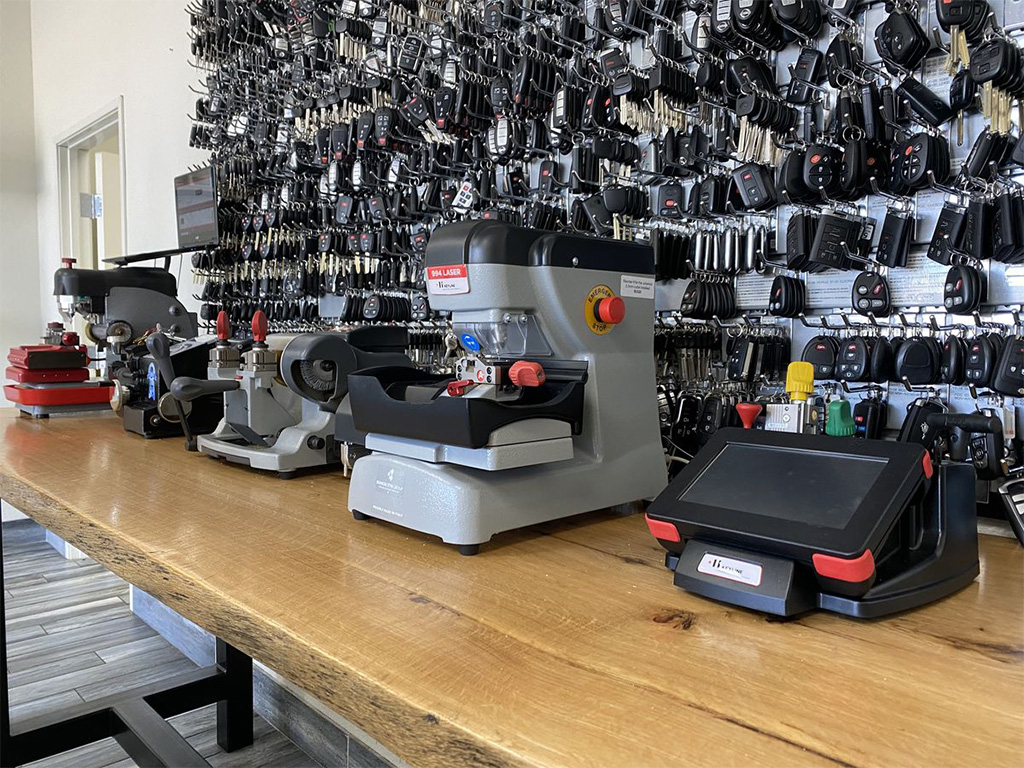

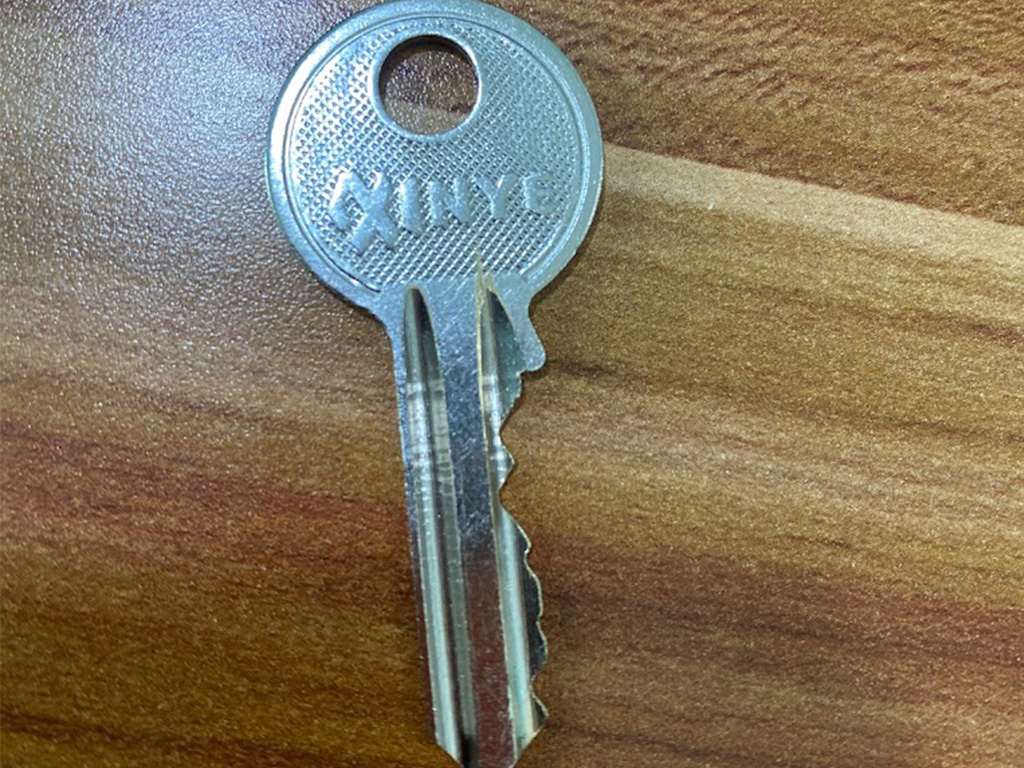

Speedy Lock & Key Services is a modern locksmith company that specializes in professional key cutting and programming. Other services include replacement of worn out keys and remotes, reconfiguration of locks, remotes and chips, ignition and door repair, as well as replacement of lost keys. Speedy Lock & Key Services‘ team of locksmiths has the technology and training required to cut and program all types of key blanks and transponder chips – for all types of pin tumbler locks (‘Yale’ locks) and almost any vehicle make or model.

We specialize in all types of automotive keys in Lusaka, Zambia. Be it a remote key, smart key or aftermarket non remote keys, we have the required mobile diagnostic programming technology to cut and program your transponder or electronic keys whether you have a key or not. We are an entity that offers advances key cutting and coding solutions for all types of vehicles. We are not limited to offering services like switch replacement, ignition repairs, car key casing repairs and many more.

Speedy-Lock-about-us

Making Your Life Safer

We provide customized Locksmith solutions to help
protect your people and property.
learn more
Safe Installation

From basic wall safes to advanced ones & insurance approved categorized safes we have a solution for your requirements. We are also an authorized dealer of strongroom doors.

Locksmith Services

Whether you are concerned about security or need help with unlocking or fixing a broken door lock, you can put your trust in Speedy Lock & Key Services, residential security experts.

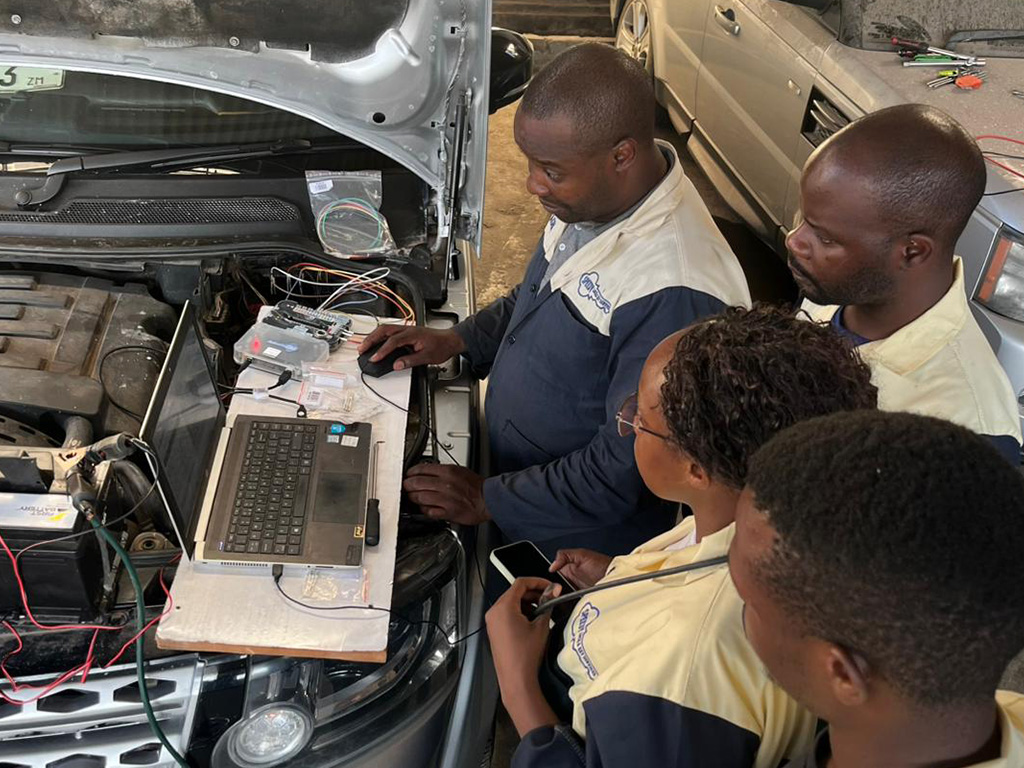

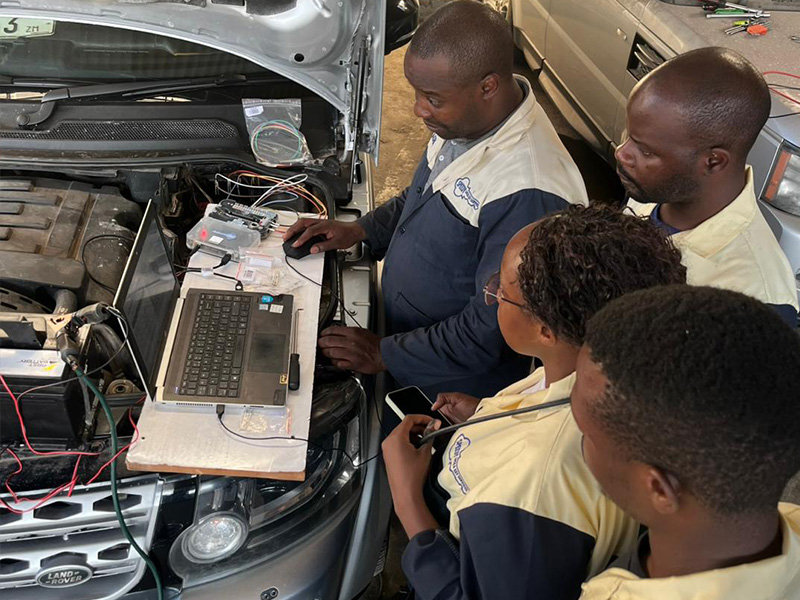

Car Key Programming

Using up-to-date equipment, Speedy Lock & Key Services offers exceptional car key cutting and programming services. The company is committed to providing its clients with fast.

Safes & Locks

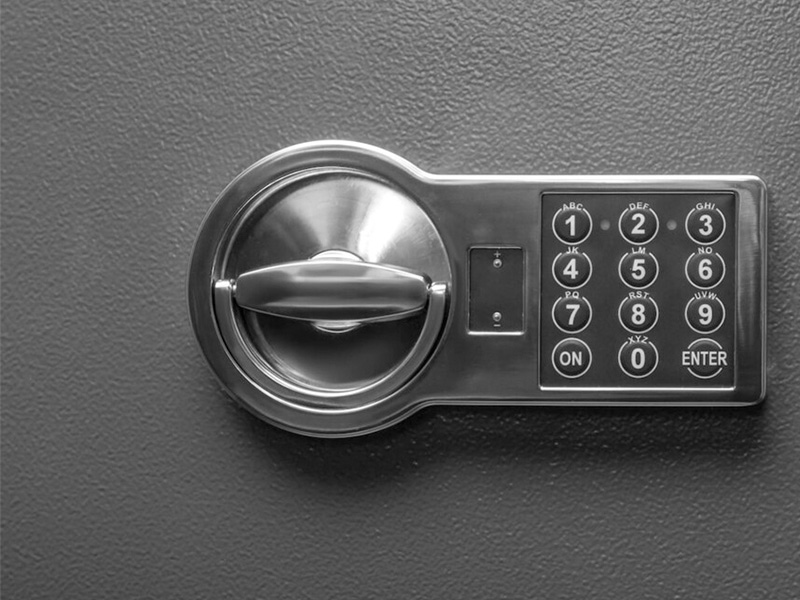

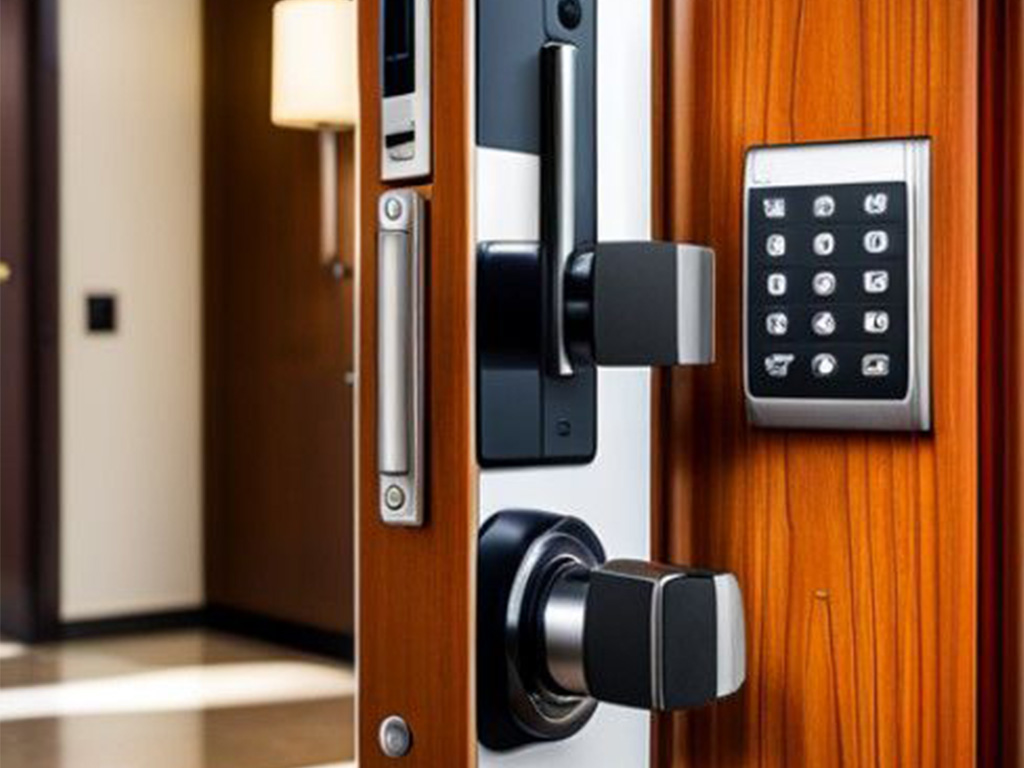

At Speedy Lock our Safe Technicians can open any category safe, we use specialized equipment and latest technology to ensure quick and effective service. Electronic Locks, Combination Locks

Security Doors

We  offer a wide range of highly resilient original and custom  made security doors and windows in any shape, size and design that has specifically been designed and tested to resist any form of attack including “crow bar style” home invasions and

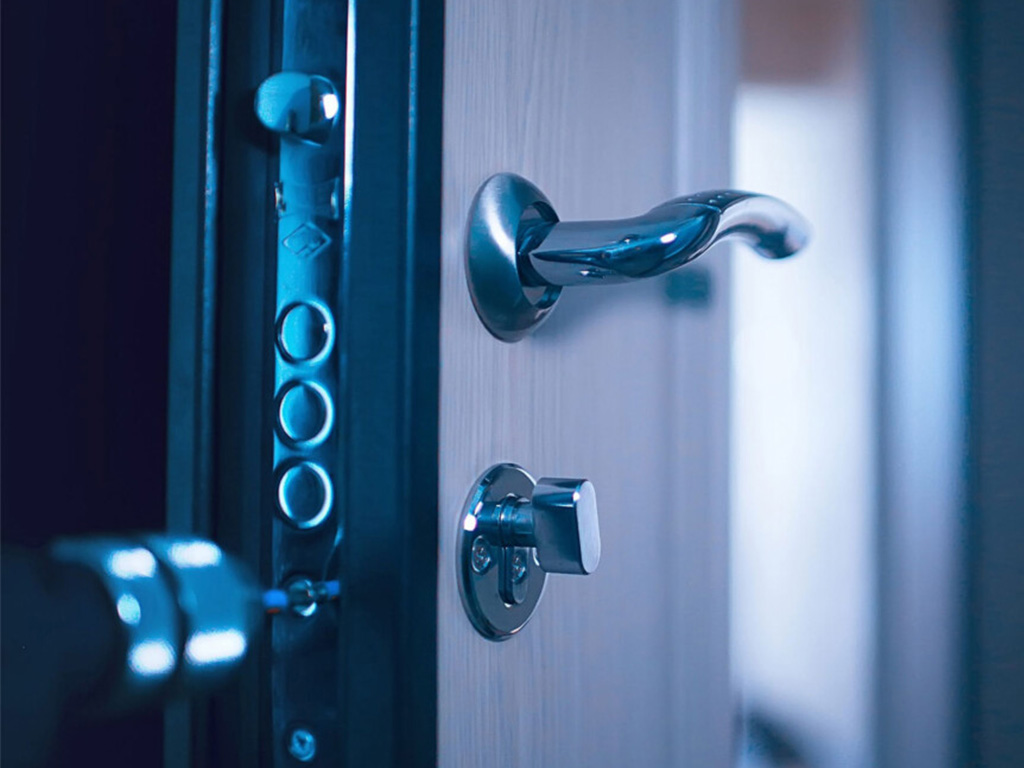

Residential Locksmith

Our Residential Locksmiths services provides emergency locksmiths as well as the most comprehensive security solutions and fully trained. We offer door lock repair service, hardware installations,

IMMOBILISERS

We Fix and Replace Transponders

The transponder consists of a resonator and IC circuit which includes a processor and non-volatile memory, embedded into the ignition key or remote transmitter. A separate power supply is not required as the transponder derives its power from an induced signal, at the correct frequency, emitted by the antenna ring from the immobilizer control module. When the resonator circuit receives a signal at the correct frequency it generates sufficient power to enable the IC circuit and processor to operate and to transmit its identification code. Each transponder ignition key or remote transmitter has a unique code out of a possibility of millions of combinations.

0
Key Cuts
0
Car Keys Programmed
0
Satisfied Customers

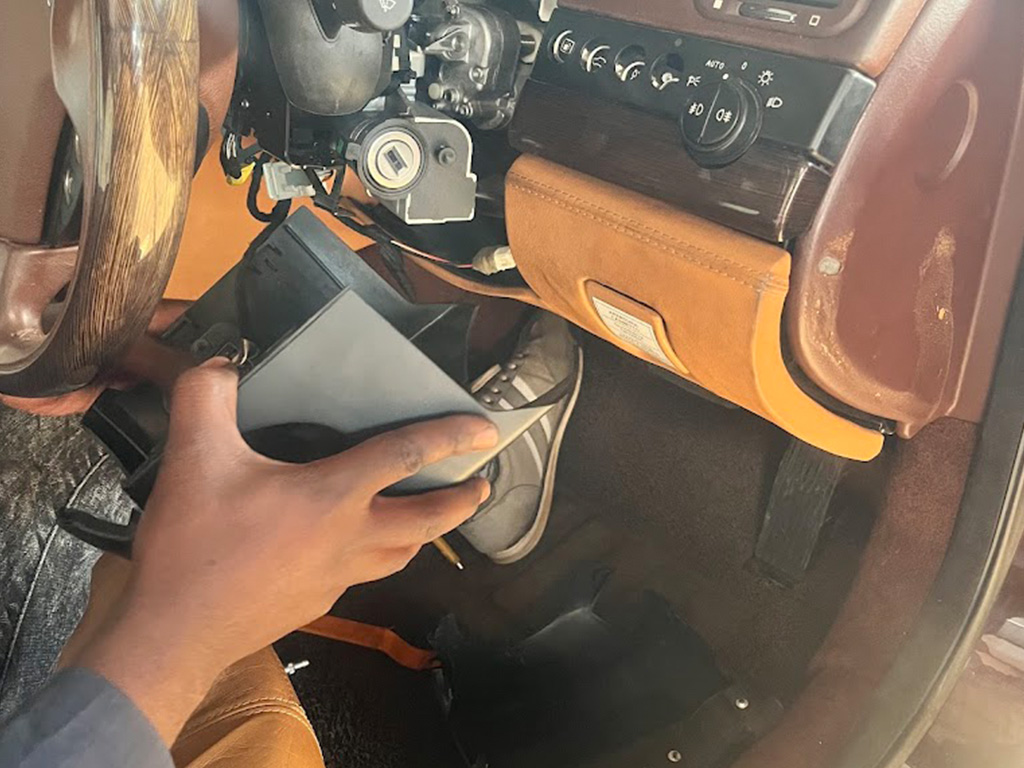

Antenna Ring

The antenna ring is a coiled wire (aerial) located around the ignition lock assembly. It has two functions, the first being to transmit a carrier frequency signal, usually in the 100-150 kHz range, from the immobilizer control module to the transponder. The second is to transmit the identification code of the transponder back to the immobilizer control module.
Our services
IMMOBILISERS

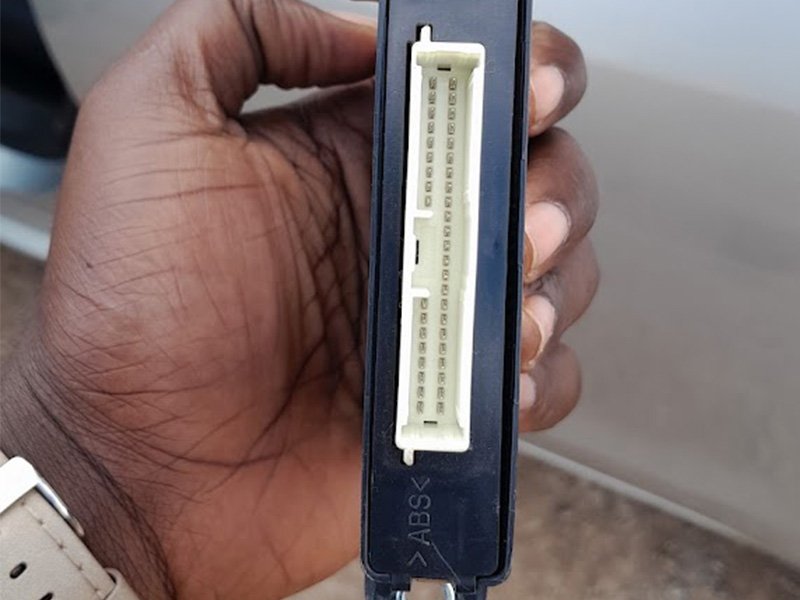

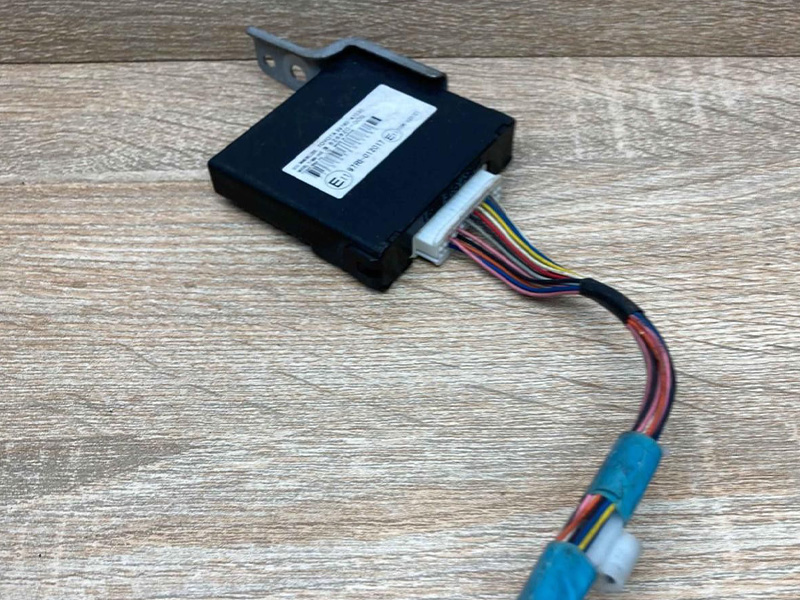

The Immobilizer control module

The immobilizer control module can be a stand-alone component or its function can be integrated into other control modules. It communicates with the antenna ring around the ignition switch and the engine control module (ECM). When the ignition switch is turned to the ON position, a carrier frequency signal is sent to the antenna ring around the ignition lock assembly. Some systems have the ability to adjust the frequency of this signal, up or down, to ensure trouble-free communication without interference from other signals. Engine control module (ECM). The engine control module (ECM) needs special software designed for immobilizer system operation. To enhance security and prevent components from being swapped from another vehicle, the immobilizer control module will only be able to communicate with the ECM that it recognizes and is registered with it from new.

Speedy-Lock-services

System operation

When the ignition is switched on and an attempt made to start the engine the ECM sends an unlock request to the immobilizer control module. The immobilizer control module outputs a 100-150kHz carrier wave to the antenna ring. This signal is induced into the transponder. The transponder responds to this induced signal by outputing the key code identification which is transmitted back to the immobilizer control module via the antenna ring. This key code identification is then compared with the stored code in the immobilizer control module memory. At this point the immobilizer control module only recognizes this as one of a series of registered keys. To further increase security, the immobilizer control module transmits a random code to the ECM and the key transponder and requests an algorithmic calculation to be performed. The immobilizer control module also performed. The immobilizer control module also performs this algorithmic calculation independently. The ECM and key transponder return the answers of the algorithmic calculation to the immobilizer control module. A comparison is made and if they match, the unlock request is granted. If any of the calculations do not match the unlock request is denied, the engine will not start or, if already started, will stop. This authentication procedure happens so quickly that the driver may only be aware of a very slight delay between the key being turned and the engine starting. The immobilizer system is automatically reset when the ignition is switched off and the key withdrawn from the ignition switch. Many immobilizer systems feature fault memories which can be accessed in various ways e.g. by counting immobilizer warning lamp flashed, bridging data link connector (DLC) terminals with voltmeter or LED tester, or using suitable diagnostic equipment.
